Product description
General Properties
- Data saving for approximately 4,096 welds
- High voltage protection
- LCD display – All welding parameters
- Automatic welding control
- Optional barcode scanner
- ISO 9001

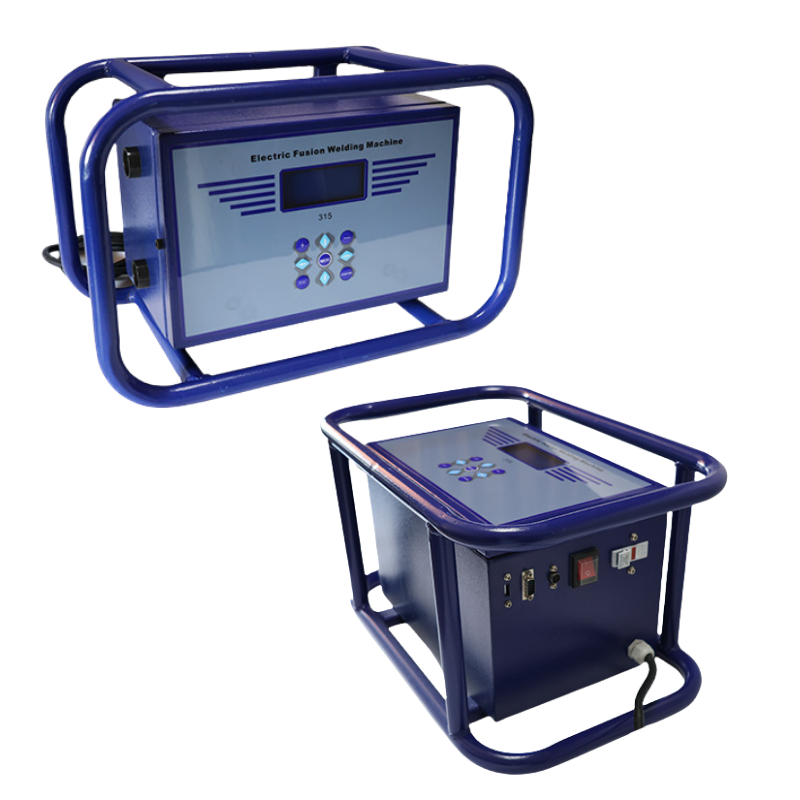

Fusion Pro 315
Fusion Pro 315
The Fusion Pro 315 Welder is a high-end, advanced welding solution designed for demanding applications. The Pro can store data for up to 4,096 weldings, making it ideal for large-scale projects.
TECHNICAL SPECIFICATIONS
Electrical Protection: IP54
Control Type: Constant Current / Voltage
Coupling Size Range: 20-315 mm
Output Voltage: 10 V-60 V AC
Time Adjust Range: 1-9999 Seconds
Input Frequency: 50-60 Hz
Input Voltage: 190-240 V
Output Power: 3.5 kW
Machine Weight (kg): 28.0 Kg
