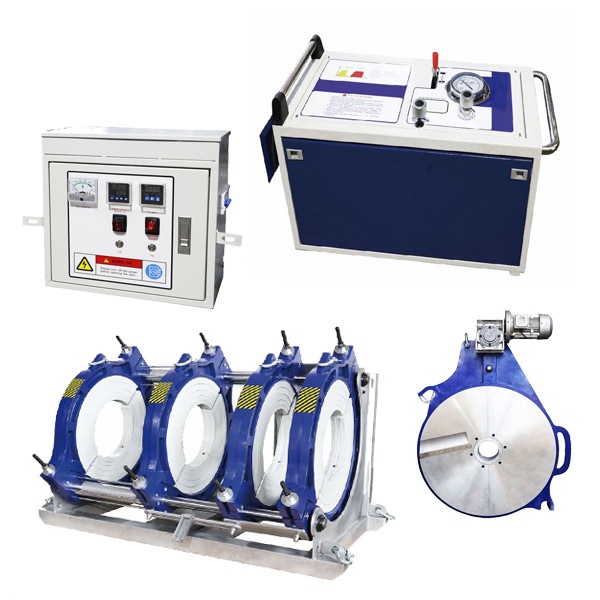

This Hydraulic Butt Fusion Welder, TITAN 800, is engineered for welding materials such as PE, PP, and PVDF, featuring a robust design that includes a basic frame, milling cutter, heating plate, hydraulic unit, electric unit, and support. It operates reliably in extreme temperatures ranging from -40°C to +40°C, with a heating plate capable of reaching a maximum temperature of 270°C. The machine offers a pressure adjustable range of 0-10Mpa, ensuring precise control and optimal performance in demanding and complex working conditions.
TITAN 800
Application & Features:

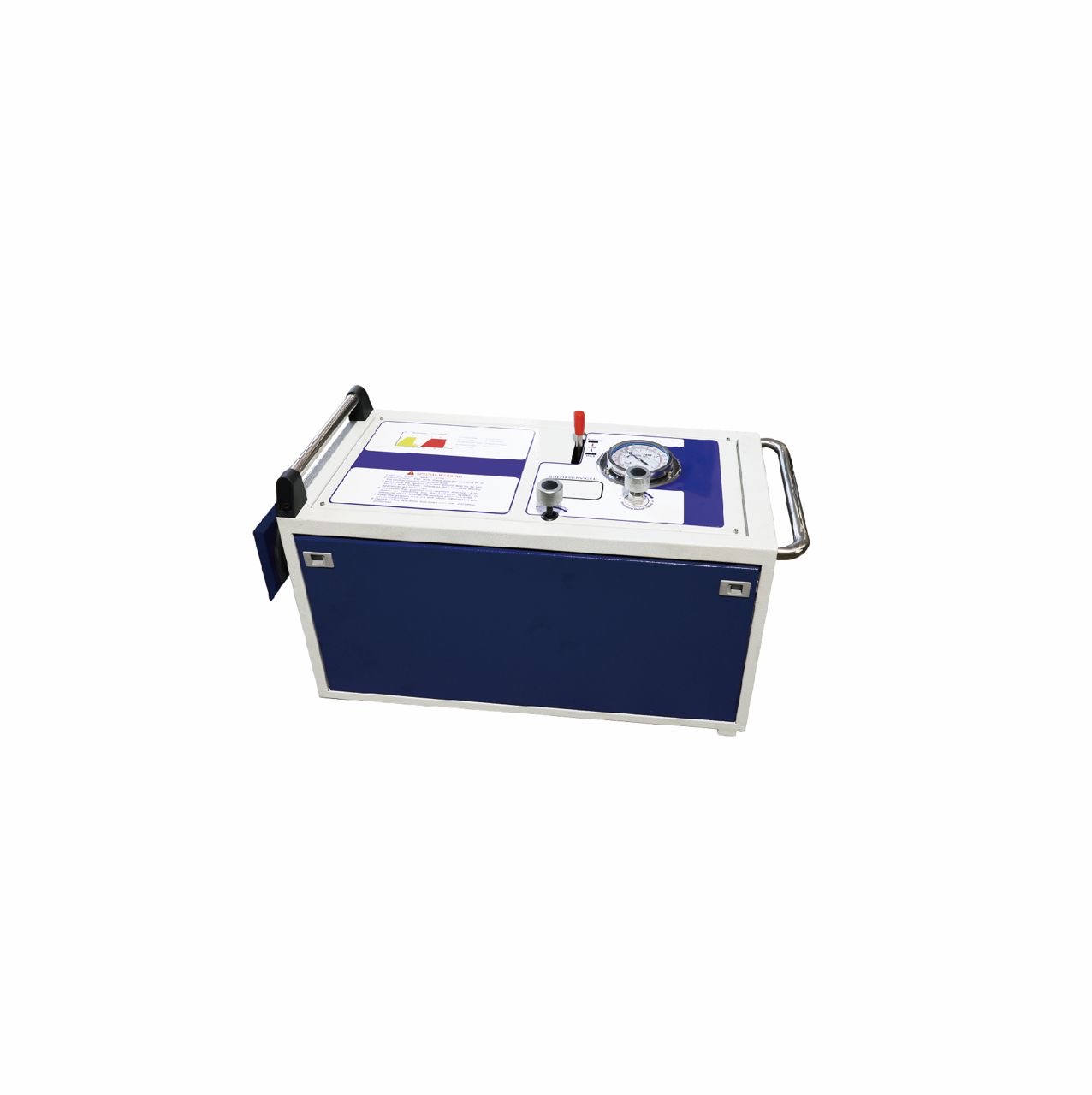

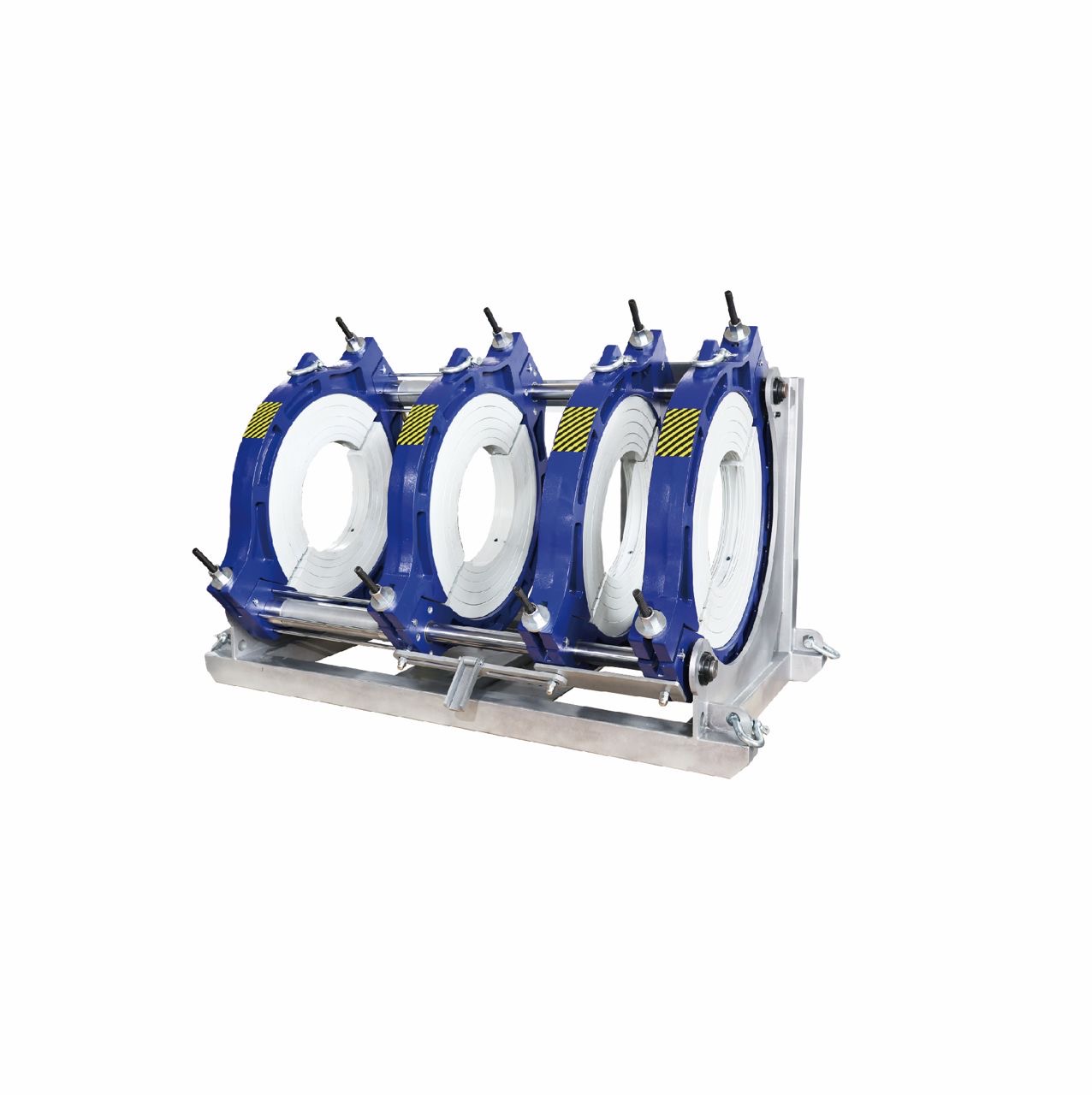

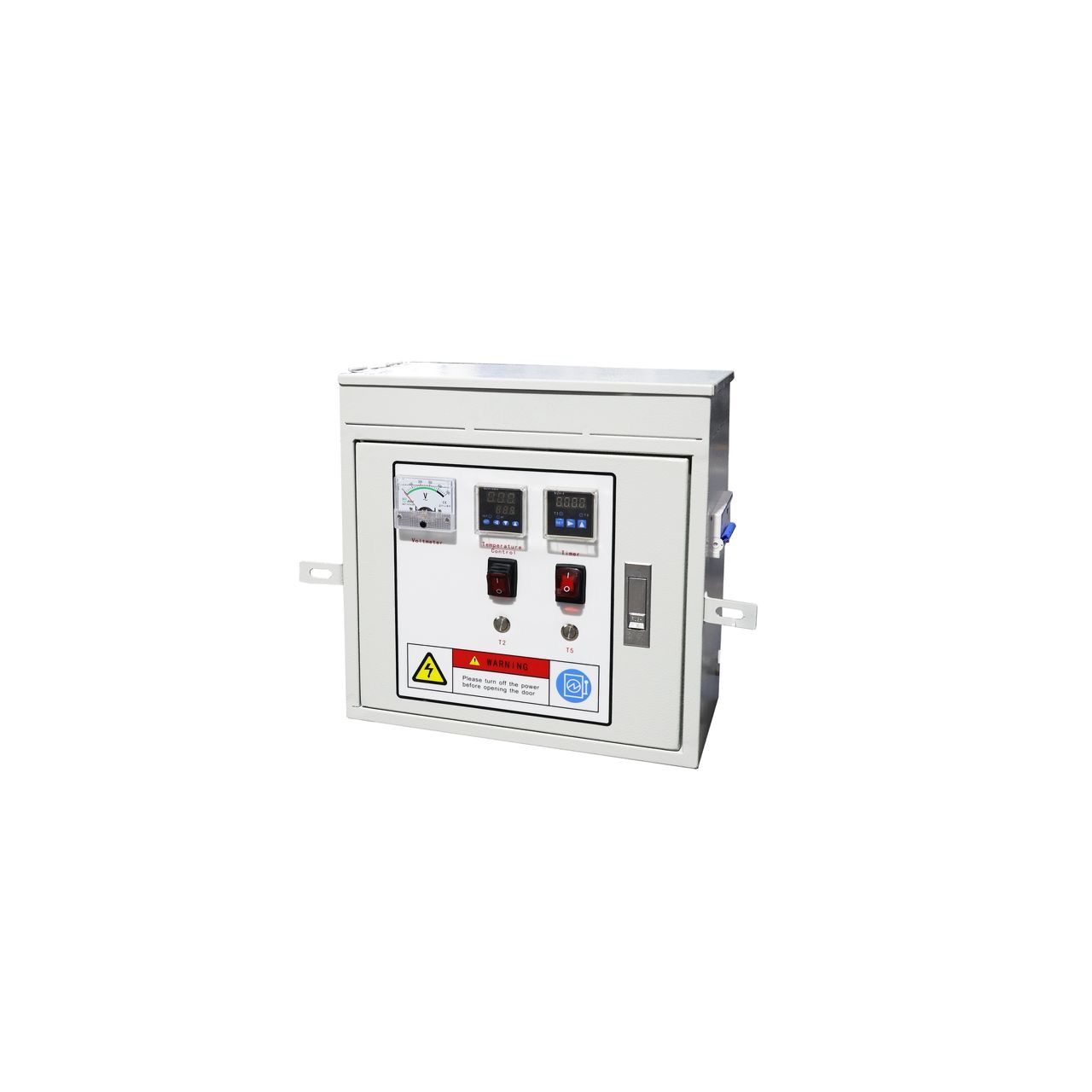

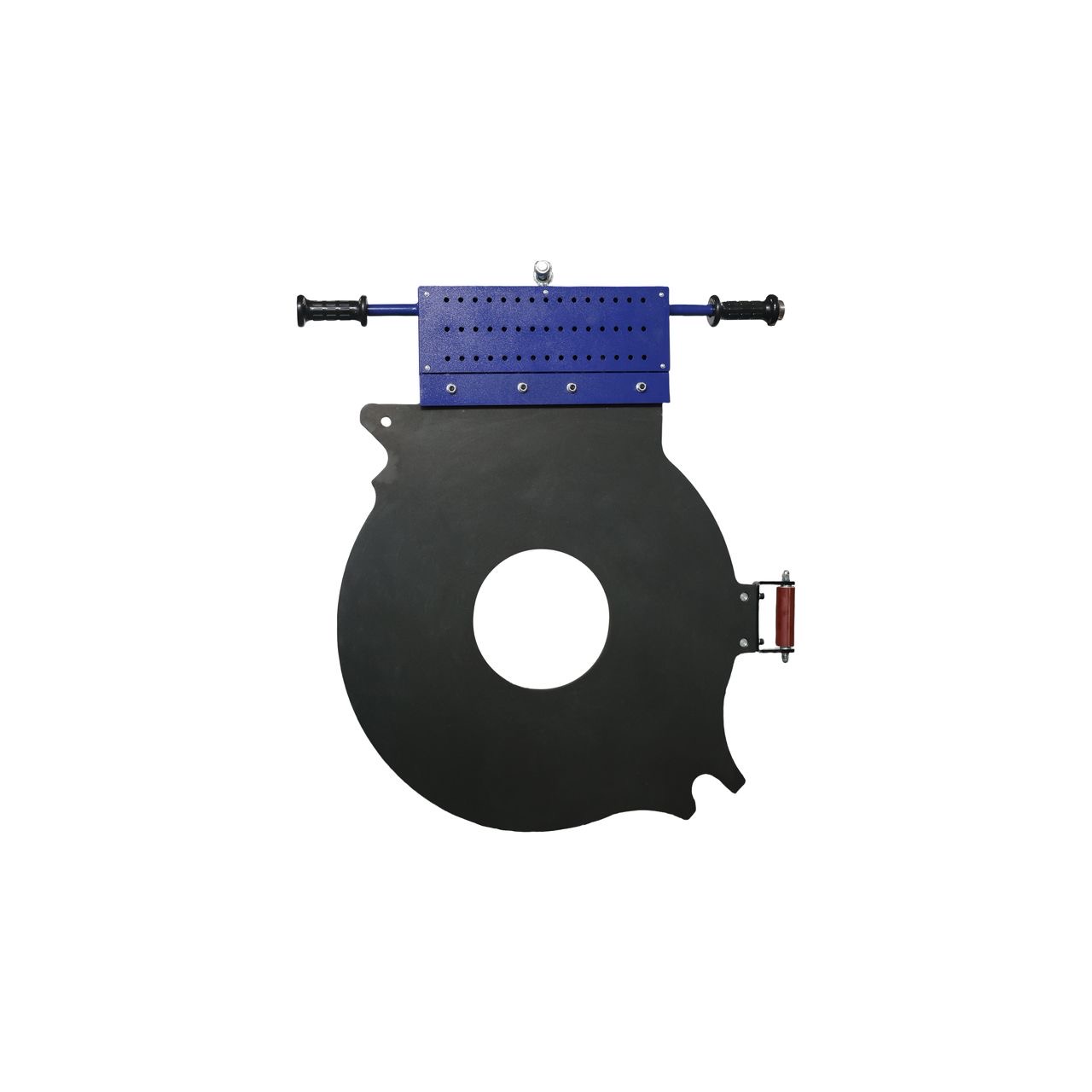

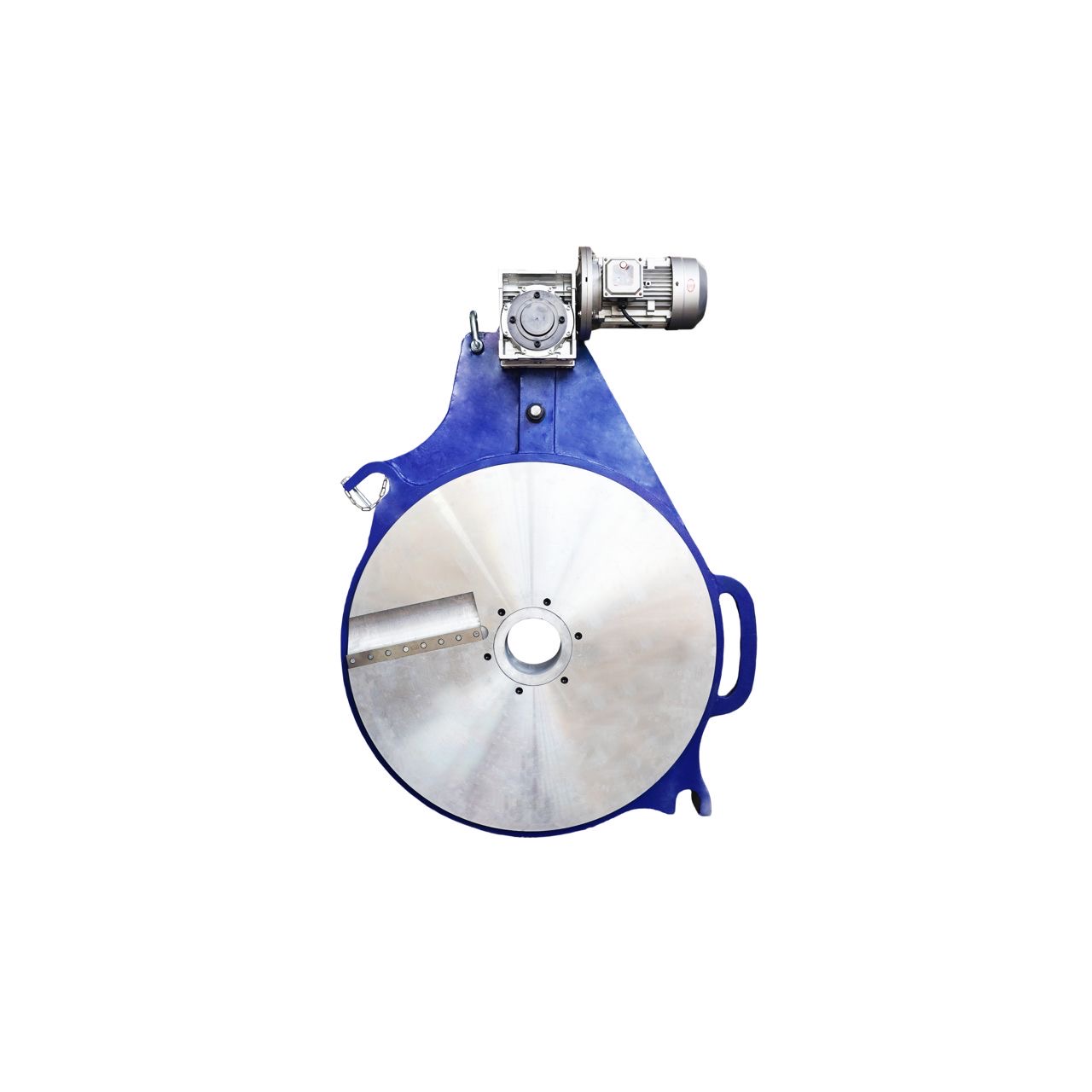

1: Consists of basic frame, milling cutter, heating plate, hydraulic unit, Electric unit, support..
2: Working environment must be between -40C°~ +40C°
3: Pressure adjustable range: 0-10Mpa
4: Heating plate Max. Temperature: 270°C
5: Suitable for material of PE, PP, PVDF.

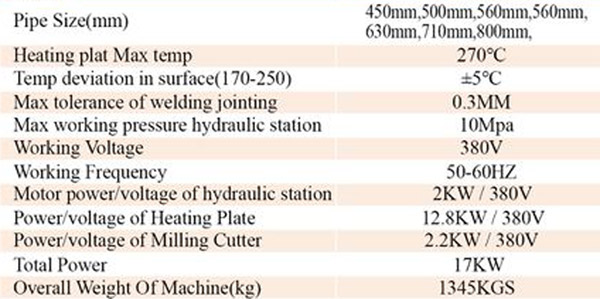

TECHNICAL SPECIFICATIONS
