Product description
Reliable leak detection through intelligent sensor technology

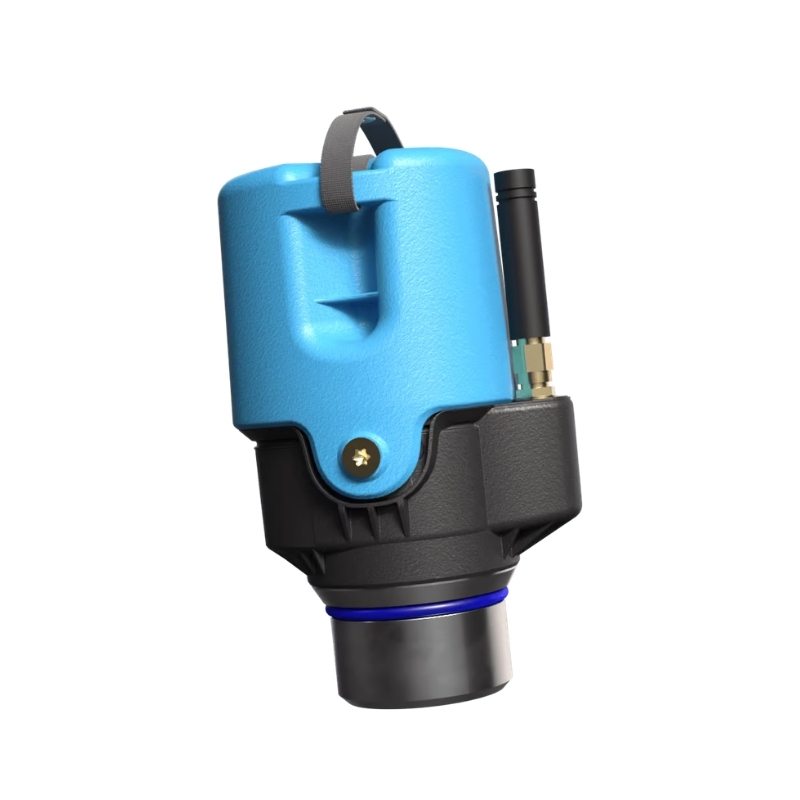

Thanks to the combination of acoustic measurements, pressure monitoring, and temperature control, the SmartEAR®+ eC enables particularly precise localization of leaks with unique sensor technology from SebaKMT. With its robust and waterproof design, it is ideal for demanding operating conditions in deep shafts or main supply lines.
Easy installation via the SmartEAR®-GO! app allows flexible configuration of measurement cycles and real-time monitoring of the recorded data. Cloud-based analysis not only enables early leak detection, but also long-term optimization of water network operations.
- Measurement accuracy: Pressure (0-16 bar, ±0.9%), temperature (-20°C to +80°C, ±2°C)
- Versatile mounting options
- High security standards with AES 128-bit encryption for secure data transmission
- NSF certification for safe use in drinking water systems
- Optimized for use in water distribution networks to sustainably reduce water losses
Efficient network monitoring with the SmartEAR®+ eC
Continuous recording and transmission of pressure and temperature values for immediate detection of deviations. This allows fluctuations to be identified at an early stage and countermeasures to be taken before major damage occurs.
The smart sensor offers customizable measurement cycles—such as nighttime measurements when there is little background noise or according to specific requirements. This allows measurements to be optimally tailored to the grid operator’s needs.
With protection class IP68, the SmartEAR®+ is dustproof and waterproof. Even under extreme conditions, the device works reliably and delivers precise measurement data – ideal for use in demanding environments.
Thanks to NB-IoT, LTE-M, and Bluetooth, the collected data is transmitted securely and without loss—even from deep shafts or through closed covers. This ensures reliable data transmission and enables rapid analysis.
Installation is quick and easy using a magnetic ring or threaded adapter. With the SmartEAR-GO app (Android & iOS), the device can be configured and put into operation in just a few minutes. The user-friendly app offers intuitive operation and enables precise control of the measurement functions.
Frequently Asked Questions
What is the SmartEAR®+ eC and what is it used for?
The SmartEAR®+ eC is an IoT logger for monitoring water distribution systems that simultaneously measures acoustic signals, pressure, and temperature to detect leaks at an early stage.
How does SmartEAR®+ eC contribute to leak detection?
By combining noise, pressure, and temperature measurements, the device can precisely locate leaks and provide reliable data for analysis.
How are the measurement data transmitted and evaluated?
The recorded measurements are securely transferred to the POSEYEDON® Cloud, where they are analyzed, visualized, and used for network optimization.
How easy is it to install on site?
Setup and configuration are conveniently carried out via the SmartEAR-GO! app, allowing measurement cycles to be flexibly set and operation to be started quickly.
For which conditions of use is SmartEAR®+ eC suitable?
With its robust and waterproof design (IP68), the SmartEAR®+ eC is ideal for demanding applications such as deep shafts or main supply lines.
What additional functions does SmartEAR®+ eC offer?
In addition to multiple measurements, the device offers long-lasting batteries, versatile mounting options, and high security standards, including AES 128-bit encryption.
How does my water network benefit from SmartEAR®+ eC?
Early detection of deviations and continuous monitoring can reduce water losses, make maintenance more efficient, and optimize network processes.
